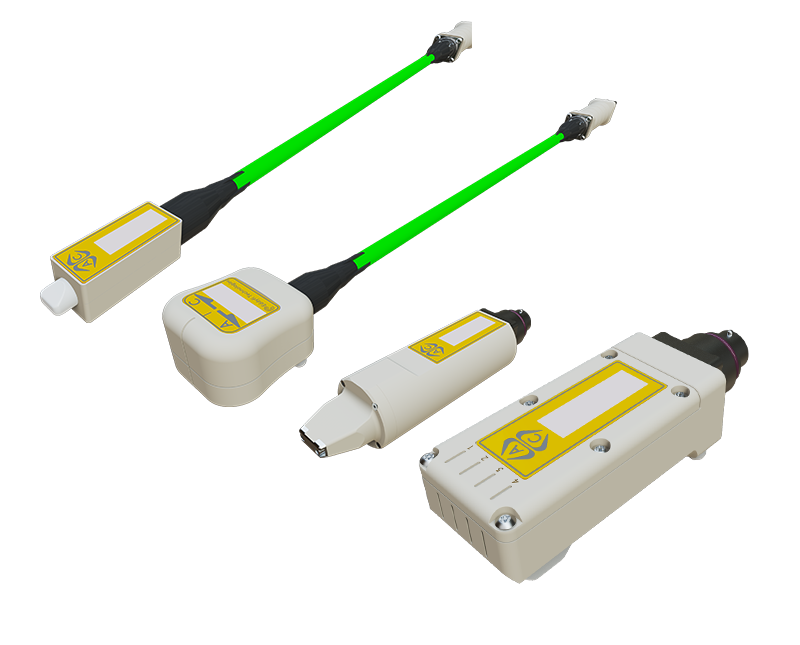

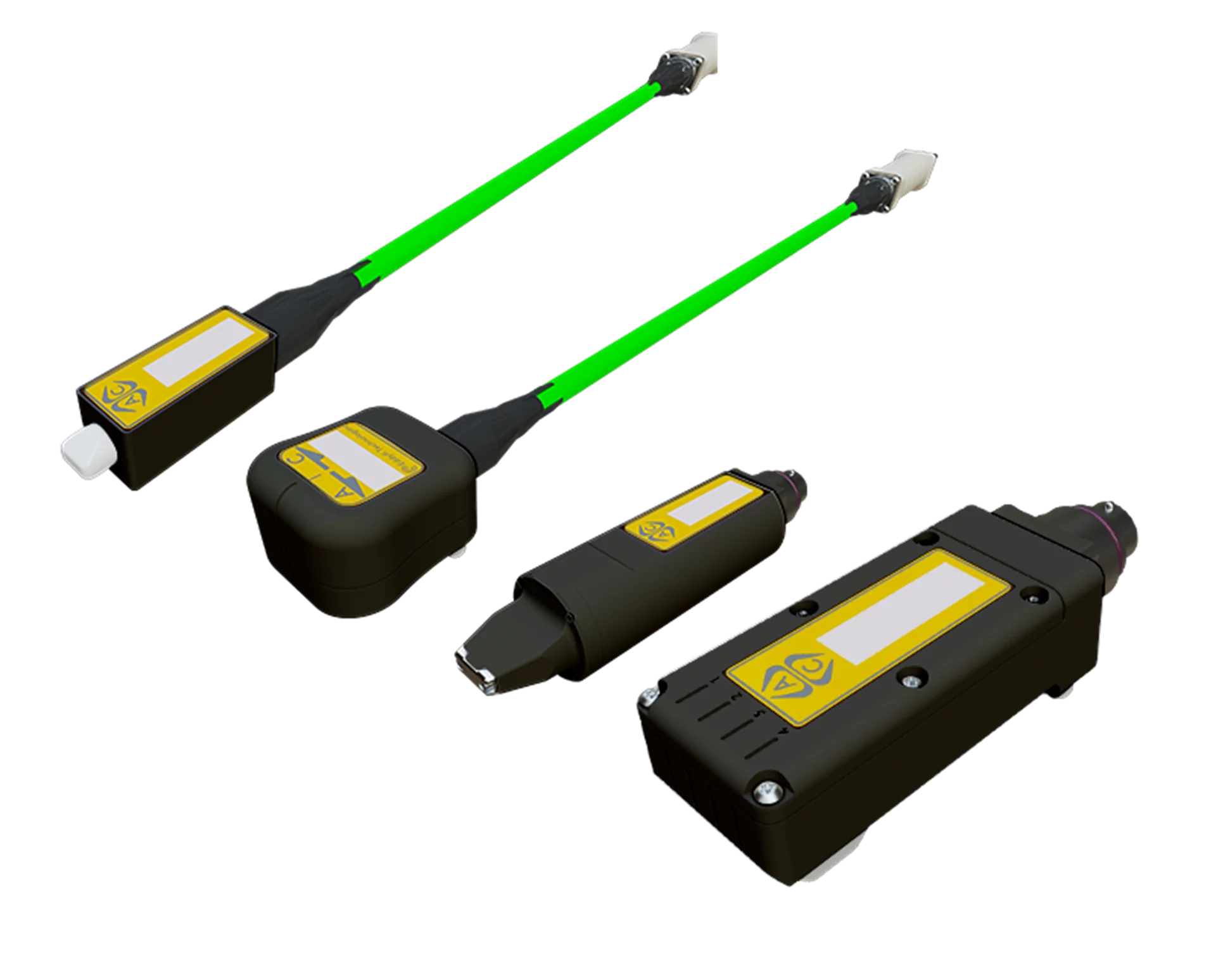

Introducing Sensu 2 Probes
Eddyfi Technologies’ functional design philosophy continues in the new and innovative ACFM® probe range SENSU2™, which partners Amigo2™ and U41D/DA to enable much faster inspections, pristine signals, and higher SNR. As “intelligent” probes, the SENSU™2 range stores configuration information onboard in the probe electronics.
Details
User Benefits
- Faster than the previous legacy probes – 2 outputs
- Rated IP68 down to 300m underwater
- All probe data stored in probe’s memory.
- Familiar probe bodies with updated electronics, cables and connectors
Available Probes
Sensu 2 Mini-Array
Compatible instruments
What's it for
Flat, wide coverage array probe for ferritic welds; X field only
Features
4 ACFM rows
Coverage
36 mm
Frequency
5 kHz (Ferritic welds only)
Integrated cable options:
- U41 compatible, watertight connector, 5m long
- Amigo 2 compatible, topside connector, 50m long
Sensu 2 Weld probe
Compatible instruments
What's it for
The probe of choice for generic Ferritic or Austenitic Weld inspection.
Features
- Stabilizers
- Wider field
Coverage
- 15 mm
Frequency
- 5 kHz Ferritic weld inspection
- 50 kHz Austenitic weld inspection
Integrated cable options:
- U41 compatible, watertight connector, 5m long
- Amigo 2 compatible, topside connector, 50m long
Sensu 2 Tight Access Probe
Compatible instruments
What's it for
For subsea Ferritic or Austenitic Weld inspection in tight locations
Features
- Stabilizers
- Wider field
- Tapered and angled nose to reach into tight areas
Coverage
- 15 mm
Frequency
- 5 kHz Ferritic weld inspection
- 50 kHz Austenitic weld inspection
Integrated cable options:
- U41 compatible, watertight connector, 5m long
- Amigo 2 compatible, topside connector, 50m long
Sensu 2 Ground Weld Probe
Compatible instruments
What's it for
For Ferritic grounded weld inspection only (5 kHz)
Features
Features a narrow and deeper reach nose.
Coverage
- 15 mm
Frequency
- 5 kHz Ferritic weld inspection
Integrated cable options:
- U41 compatible, watertight connector, 5m long
- Amigo 2 compatible, topside connector, 50m long
Sensu 2 Pencil Probes
Compatible instruments
What's it for
For Ferritic or Austenitic Weld inspection. 3 geometries per type
Features
- Compact and versatile pencil probes
- Wear resistant ceramic probe tip
- 3 available nose configurations: Straight, Right angle, transverse
Coverage
- 15 mm
Frequency
- 5 kHz Ferritic weld inspection
- 50 kHz Austenitic weld inspection
Integrated cable options:
- U41 compatible, watertight connector, 5m long
- Amigo 2 compatible, topside connector, 50m long
Sensu 2 Micro Nose Pencil Probes
Compatible instruments
What's it for
Ferritic and austenitic Weld inspection for specialist applications where hi POD on shallow flaws is required. 3 different geometries
Features
- Compact and versatile pencil probes
- Wear resistant ceramic probe tip
- 3 available nose configurations: Straight, Right angle, transverse
Coverage
- 10 mm
Frequency
- 5 kHz Ferritic weld inspection
- 50 kHz Austenitic weld inspection
Integrated cable options:
- U41 compatible, watertight connector, 5m long
- Amigo 2 compatible, topside connector, 50m long
