Magnifi

Multi-technology and fully customizable

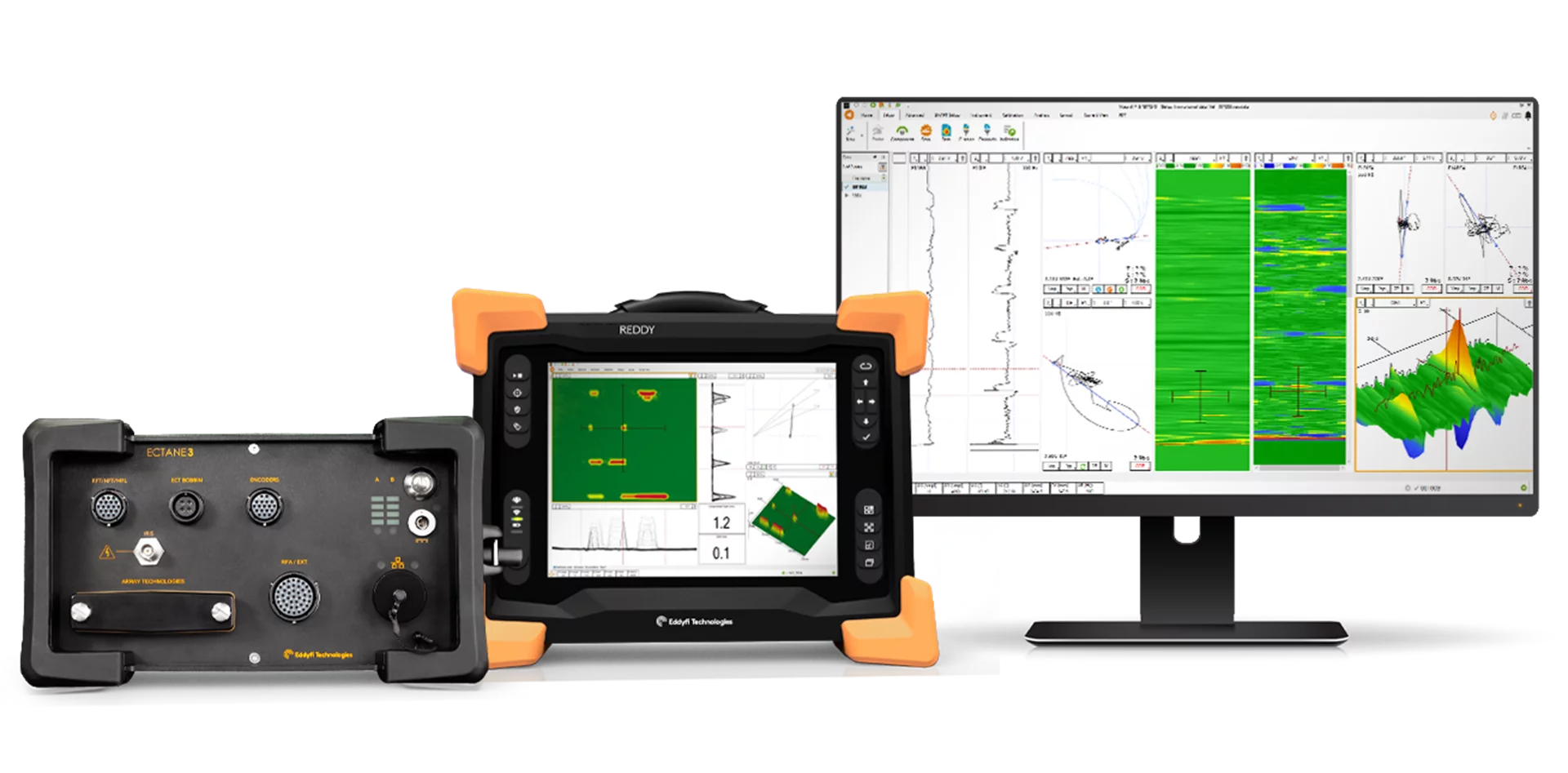

Introduced in 2011, Magnifi software is used by thousands of operators worldwide for the inspection of a wide range of components. Since its first version, it has integrated several technologies and become even more versatile over time.

Advanced heat exchanger tubing inspections with:

• Eddy Current Testing ECT and Eddy Current Array ECA
• Near-Field Testing NFT and Near-Field Array NFA
• Remote-Field Testing RFT and Remote-Field Array RFA
• Magnetic Flux Leakage MFL
• Internal Rotary Inspection System IRIS

Advanced surface inspections with:

• Eddy Current Array ECA
• Tangential ECA TECA^TM
• Magnetic Flux Leakage Array MFLA

Latest innovations

Magnifi software now features Remote-Field Array (RFA), accompanied by a comprehensive family of RFA probes specifically designed for inspecting ferrous tubing. The C-scan capabilities provide enhanced insight into defect morphology, while the array of sensors offers superior detection near external features compared to conventional RFT methods. Additionally, Magnifi 5 introduces a patent-pending artificial intelligence module, engineered to boost efficiency and confidence in final reports. This cutting-edge innovation also enhances the acquisition of higher-data quality for ECT inspections.

Advanced signal processing

In combination with the industry’s highest resolution probes, Magnifi incorporates 2D and 3D C-scans, making analysis more intuitive and results easier to interpret. Up to 256 raw channels can be generated by sequential coil activation and displayed in a single C-scan tailored to specific detection needs. Detection thresholds allow for automated analysis and reporting of flaw indications directly in the C-scans.

Automatic recording for tubing inspection

Data acquisition and recording can be activated automatically when the probe enters or leaves a tube. This allows the person acquiring the data to avoid having to activate these functions manually on the computer or on the instrument. It is also possible to display the number of tubes being scanned in large print to keep track while away from the screen.

Create reports in a few simple steps

Many report templates can be selected in Magnifi and linked with the report entries made in the software. Only a few steps are necessary to generate a report with customizable fields, a picture of the component, a list of defects, insightful graphs, and the logo of your company. This makes it simple to provide a final inspection report before leaving the job site.

Connectivity tools

Are you ready to take your Reddy and Reddy-AC inspections to the next level? Eddyfi Technologies’ connected tools are here, bringing a new era of connectivity to the world of non-destructive testing (NDT). Whether you're a seasoned Eddyfi product user or exploring advanced inspection solutions, our connected tools are your gateway to unparalleled efficiency and collaboration. These tools mark the beginning of a connectivity revolution, poised to integrate into other Eddyfi Technologies’ inspection solutions. Learn more about connected inspections with Magnifi software here.

Artificial Intelligence (AI) in ECT inspections

Using a patent-pending process with AI neural networks to automatically detect and position cursors on tubesheets, support plates, and defects during ECT heat exchanger tubing data analysis. The AI-ECT module, activated with just a few clicks, is designed to improve analysis productivity, enhance confidence in analysis and support the collection of higher-quality data. With a user-friendly interface, it simplifies both acquisition and analysis processes. The AI-generated findings suggest potential indication locations, but they are not intended to serve as an automatic reporting tool. The responsibility remains with a certified analyst to determine which indications should be reported.
Learn more

Collect Superior Data Quality

Specific tools have been integrated into Magnifi 5 to ensure high-quality data collection. The artificial intelligence module accurately identifies landmarks and includes comprehensive data quality validation to detect and flag potential issues. This tool is capable of identifying where the complete length of the tube has not been acquired, instances of signal saturation, and any occurrence of broken channels on the probe.

Achieve up to 50% productivity gains in ECT data analysis

The benefits of AI findings are enhanced by the introduction of tools developed to help analysts quickly find the critical information they want to report:

• Defect Grouping: Allows for rapid identification of the most relevant indications to report.
• Tube List Sorting: Prioritizes tubes with the highest number of potential indications, bringing them to the top.
• Filtering Options: Enables analysts to display or hide categories of AI findings, such as indications, no indications, DQV results, and more.
• High-Precision Automatic Cursor Positioning: Speeds up report entry by accurately positioning cursors.

By combining these tools, analysts can reduce ECT data analysis time by approximately 50%, while increasing confidence that no major defects are overlooked.

STD and PRO

The Standard (STD) version of Magnifi for desktop supports up to five technologies in conventional modes: ECT, RFT, MFL, NFT, and IRIS. The Professional (PRO) version enables access to advanced inspections with array sensors for ECA, TECA, MFLA, and NFA. ECT acquisitions are now powered by Artificial Intelligence (AI) module introduced in Magnifi 5.

CPN

Built with the same intuitive interface, Magnifi Companion (CPN) allows desktop analysis of any data acquired with the Reddy unit. Analysts can be up and running in next to no time, with larger data layouts at their fingertips. Whether CPN is used to plan and set up inspections for several instruments or to review field data, operators can take full advantage of Reddy’s industry-leading capabilities.
