Packaged with the latest technology, Reddy® and its embedded data analysis software offer the most intuitive user experience, which includes real-time C-scans, a modern, rugged, and large multi-touch interface, as well as many other features that enable fast, high-PoD surface inspections.
Details

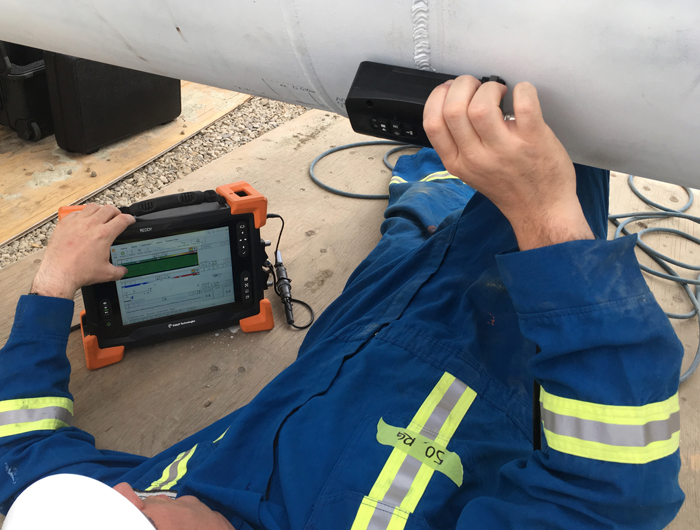

Detecting and Sizing Cracks in Carbon Steel Welds
The Sharck™ is based on Tangential ECA (TECA™) technology, which was specifically developed for cracking in carbon steel. Not only does it enable measuring surface-breaking crack position and length, but also sizing cracks as deep as 7 mm (0.28 in). Furthermore, the Sharck allows simultaneously scanning the weld cap, toe area, and heat-affected zone for a longitudinal and transverse crack without surface preparation or paint removal.
Find out more about this application by watching our webinar with Marc Grenier.
Assessing Corrosion on Ferromagnetic Pipes, Tank Walls and More
MFL pipescans can adapt to a wide range of diameters (48 mm [1.9 in] to flat surfaces). The magnetic flux leakage option allows you to fully benefit from the Reddy® versatility in order to fast screen large areas for corrosion indications. The array of sensors provides large coverage and high-PoD. Liftoff and thick magnetic walls are now at reach.
Want to see Reddy in action? Book a demo!
Detecting and Sizing Cracks in Stainless Steel Welds
Padded ECA probes adapt to geometry variations in almost every direction, making the probes perfect for examining weld beads, transitions, and Heat-Affected Zone (HAZ). The probe’s design enables detecting surface cracks 0.5–1 mm (0.02–0.04 in) long in welds with minimal surface preparation. The probe’s membrane is extra-tough to better withstand friction.
Assessing Corrosion on Aluminum and Stainless Steel Tank Floors
Semi-flexible ECA probes can adapt to a tank floor’s curvature and other geometric features, offering sufficient penetration to scan through thick aluminium/stainless steel (over 6.35 mm [0.25 in] thick). So doing, the solution is capable of detecting and characterizing corrosion-related defects such as pitting and thinning affecting as little as 10% of a plate’s thickness. Read the application note about it.

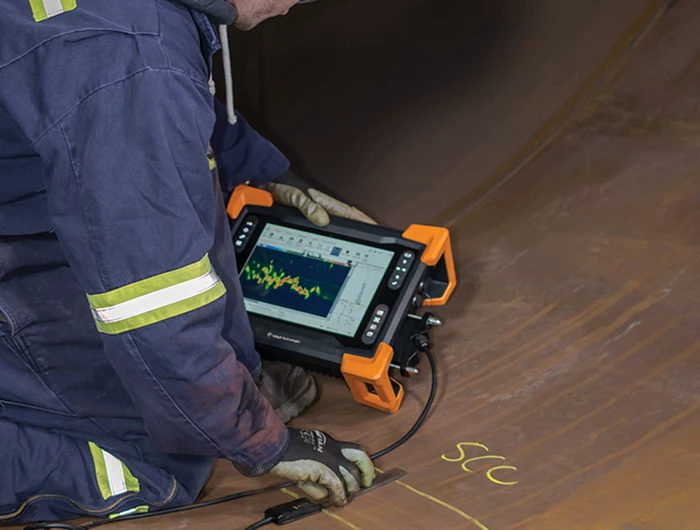

Detecting and Assessing Stress Corrosion Cracking in Base Metal
I-Flex™ probes are the most versatile ECA probes in the industry. Thanks to their multiple built-in topologies and flexible bodies, they can address a variety of applications. I-Flex probes are perfect for detecting Stress-Corrosion Cracking (SCC) in both ferrous and non-ferrous materials. Whether SCC is affecting the integrity of pipelines, pressure vessels, or tanks (on base metal or internal cladding), encoded scans performed with I-Flex probes allow efficient sizing of clusters.
Magnifi CPN
This version of the Magnifi® software allows you to perform advanced analysis of the data acquired with Reddy directly on your computer. Magnifi CPN offers the same graphical user interface as Magnifi GO so any analyst can be up and running in next to no time, with a wider range of larger monitor data layouts than Magnifi GO. This means that Reddy units can be out acquiring data in the field while analysts are hard at work on their computers extracting value from the data. Furthermore, with Magnifi CPN you can easily plan and set up inspections for several instruments to make the most of your hardware.
Sign-up
Drop Tests
Testing was performed along the lines of the MIL-STD-810G standard, method 516.6, procedure IV.
Specifications
GENERAL
- 32, 64, or 128 (each available with MFL option)
- SmartMUX™
- Up to 50 000 samples/s
- 355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
- 6.6 kg (14.5 lb)
- 26.4 cm (10.4 in)
- Non-reflective (AR coating)
- Anti-fingerprint (oleophobic coating)
- 3 mm (0.12 in), chemically strengthened glass cover
- Optically bonded LCD and touchscreen
- Passive blacklight enhancement
- 2 × axes, quadrature
- Gigabit Ethernet, Wi-Fi™, Bluetooth®, HDMI, 3 × USB 2.0
