Introducing Eddyfi Technologies' automated and battery-operated remote-access Ultrasonic Testing (UT) and Phased Array Ultrasonic Testing (PAUT) scanner solutions. Designed for flexibility and efficiency, these advanced systems can be deployed in multiple configurations to meet diverse non-destructive testing (NDT) needs. With multiple configuration options, the systems cover high-speed Phased Array (PA) corrosion mapping, elevated-temperature corrosion mapping, single line corrosion scans and weld inspection utilizing both PAUT and TOFD probes. Optimize your inspections with Eddyfi Technologies' innovative UT and PAUT systems, engineered for precision and performance in challenging environments.
Details
Discover our PAUT application solution packages for:
- Corrosion Mapping View Brochure
- High Temperature Hydrogen Attack Detection View Brochure
- Boiler Tube and Small Diameter Pipe Weld Inspection View Brochure
- Austenitic Stainless Steel Weld Inspection View Brochure
- Carbon Steel Plate and Pipe Weld Inspection View Brochure
- Wet Hydrogen Sulfide Damage Assessment View Brochure
- Train Axle Inspection View Brochure

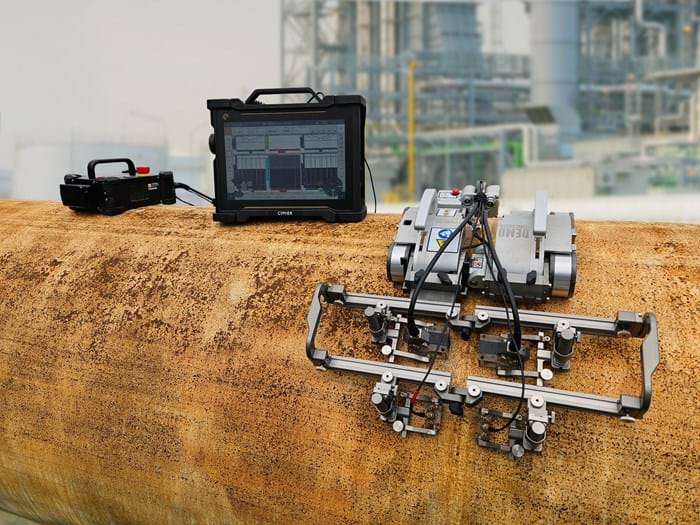

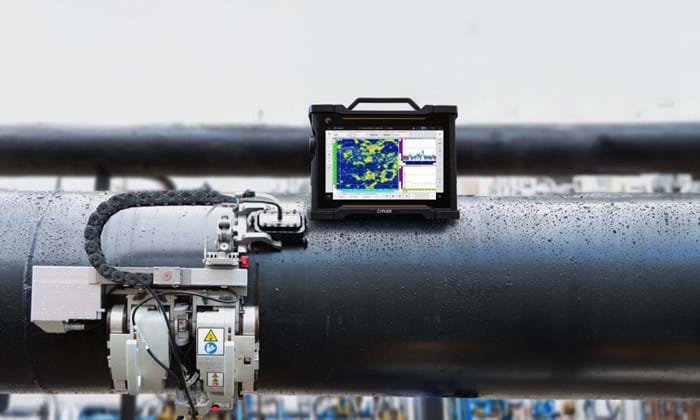

Automated Corrosion Mapping
Eddyfi Technologies' automated corrosion mapping solution offers high-speed, precision scanning for corrosion inspections for both ferrous and non-ferrous environments.
The non-intrusive technique is typically utilized on the external surface of a test component, providing a 2D map representing the condition and visually highlighting variations in material thickness due to material loss, graphically portrayed as an easy to interpret picture.
Designed for versatility, the system supports multiple ultrasonic techniques, including Conventional UT, PAUT and TFM, ensuring comprehensive data acquisition for corrosion mapping inspection applications. Ideal for large-scale structures, it provides efficient, accurate, and repeatable results, making it an excellent choice for demanding industries such as oil and gas, power generation, and manufacturing.
Learn more

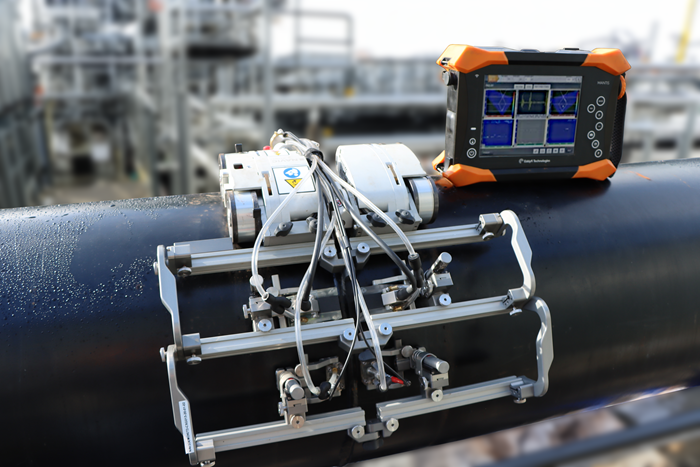

Automated Weld Inspection
Eddyfi Technologies provides high-speed, precision scanning and adaptable weld inspection solutions for diverse weld types, covering various materials (e.g., carbon steel, corrosion-resistant alloys, GFRP, CFRP, HDPE), orientations (circumferential, long seam, spiral), and geometries. Compatible with multiple ultrasonic techniques—Phased Array, Conventional UT, TOFD, TFM, PWI, TRL—the system is designed to work seamlessly with top PAUT instruments like Mantis™, Gekko®, and TOPAZ®. This approach ensures high flaw detection, accurate sizing, and compliance with standard codes, delivering substantial cost savings compared to traditional radiography.
Learn more
One-Axis Corrosion Scanning

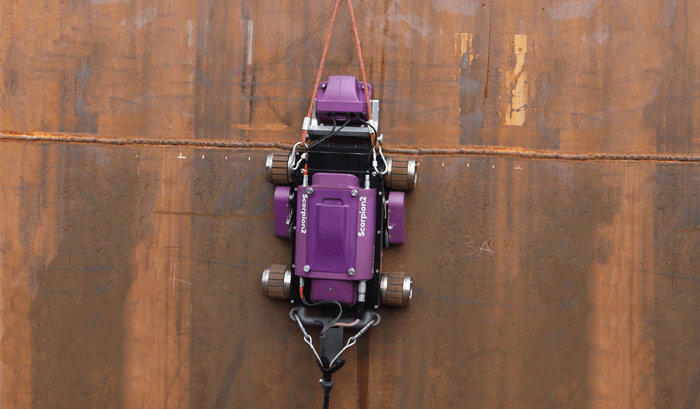

The Scorpion® 2 dry-coupled, remote-access ultrasonic crawler offers unmatched efficiency and enhanced data quality for one-axis scanning applications, such as tank shell inspections, vessels, and offshore installations. The three-component portable solution is compliant with API 650/653 standards; these advanced crawlers from Eddyfi Technologies are the ideal solution for in-service inspection of critical assets, delivering reliable and accurate results with minimal downtime.
Learn more
