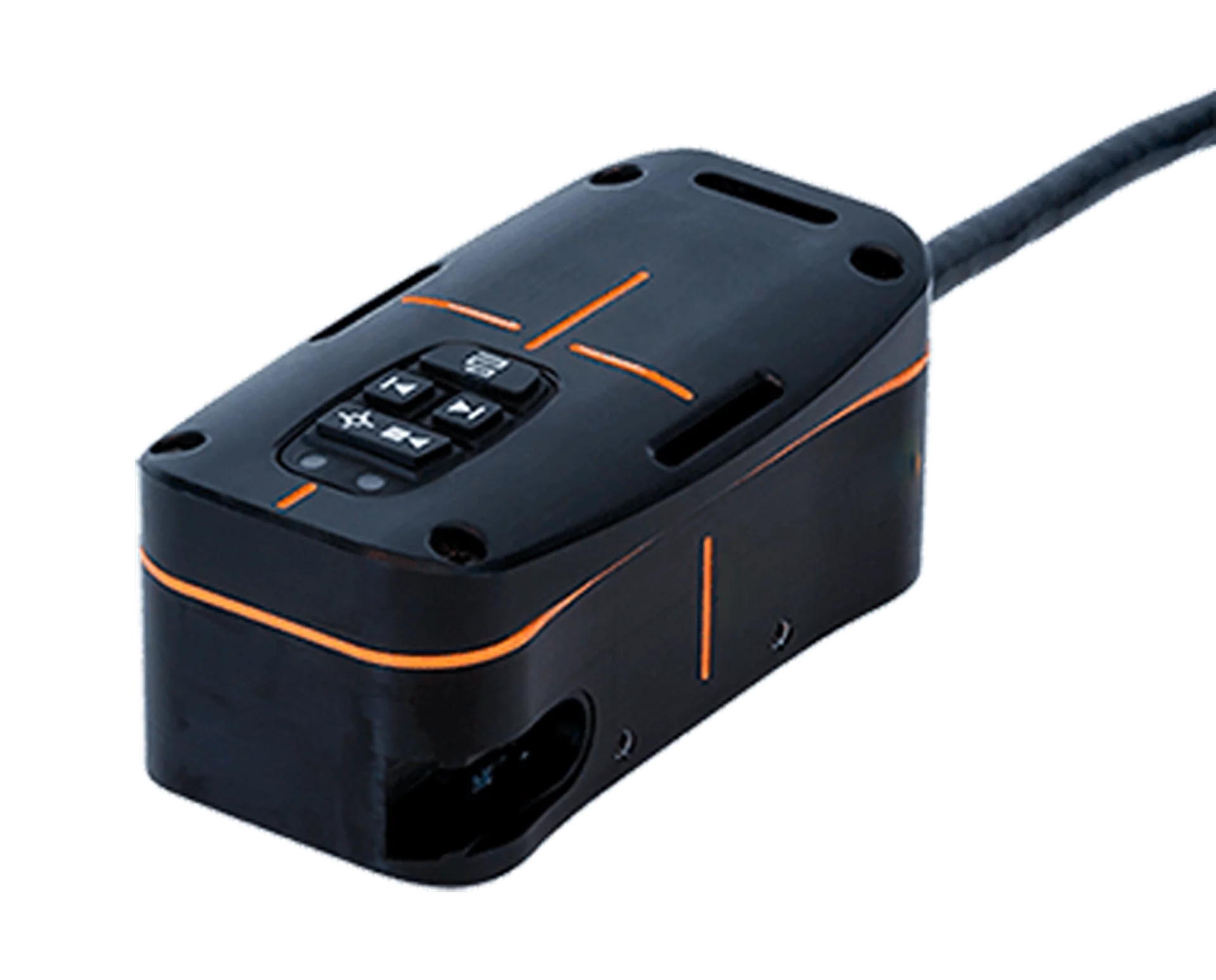

Single-element PEC probes are specifically designed to detect Corrosion Under Insulation (CUI), Corrosion Under Fireproofing (CUF), and Flow-Accelerated Corrosion (FAC) in pipes, vessels, sphere legs, and more.
Features
- Scan through metal as thick as 102 mm (4 in)
- Scan through insulation up to 305 mm (12 in)
- Scan through stainless steel, aluminum, and galvanized steel weather jackets
- Built-in remote control
- Three sizes: S, M, L
- Rugged casing
- Support for universal clip-on encoder
Details
Optimized Inspection Performance for Wall Thickness and Liftoff
The advanced non-destructive testing inspection solution, Lyft®, is compatible with three single-element probes for the right balance between wall thickness and liftoff. The single-element probe family offers flexibility and supports metal as thick as 102 mm (3 in), insulation up to 305 mm (12 in) (fiber glass, plastic wrap, concrete, and any non-ferrous material), as well as stainless steel, aluminum, or galvanized steel weather jackets.
Our single-element PEC probe also offers the capacity to inspect hard-to-reach areas of various geometries. These probes can scan walls and pipes with diameters as thin as 25 mm (1 in). A keypad allows for seamless remote operation, and the PEC probe can be equipped with a universal clip-on encoder enabling dynamic scans.
PEC probe inspection accessories include poles (up to 4.6 m/15 ft), extension cables (15 m/50 ft) for rope access, ergonomic clip-on handles and stabilizers, as well as probe shoes for operation on surfaces up to 120°C (248°F) and attenuating vibration from galvanized steel weather jackets.
There’s no need to probe any further for your next PEC probe purchase, and here’s why:
- High-quality probes: Eddyfi Technologies is known for manufacturing high-quality probes that are reliable and accurate. Our single-element PEC probes are no exception and are designed to provide highly accurate and reliable measurements.
- Customizable probes: We offer customizable probes that can be tailored to your specific inspection application requirements. This means that you can choose the probe frequency, size, and shape to fit your specific non-destructive testing needs.
- Advanced Pulsed Eddy Current (PEC) technology: The single-element probes we offer are designed using advanced PEC technology that enables you to detect hidden corrosion, erosion, and cracks in a range of materials, including metal, concrete, and composite.
- Easy to use: Eddyfi's single-element probes are designed to be user-friendly. They come with a range of accessories and tools that make them versatile and adaptable to a range of NDT applications.
- Proven track record: Eddyfi Technologies has a proven track record of providing high-quality, reliable probes to a range of industries including oil and gas, aerospace, and automotive. This means that you can trust our single-element probes to provide accurate and reliable measurements for your specific application.
Overall, if you are looking for high-quality, customizable probes that use advanced PEC technology and have a proven track record of reliability, then you’re in the right place.
Ask an ExpertSpecifications
GENERAL
- Small
- Medium
- Large
- Small: Up to 19 mm (0.75 in)
- Medium: Up to 76 mm (3 in)
- Large: Up to 102 mm (4 in)
- Small: 0–76 mm (0–3 in)
- Medium: 0–203 mm (0–8 in)
- Large: 0–305 mm (0–12 in)
- Small: 35 mm (1.38 in)
- Medium: 62 mm (2.44 in)
- Large: 100 mm (3.94 in)
- Clip-on, 16.04 counts/mm (407.44 counts/in)
- 5 m (16.4 ft)
- Direct contact operation: 70°C (158°F)
- Direct contact with probe shoe: 120°C (248°F)
