Eddyfi Technologies offers packaged solutions with probes, wedges, and scanners for advanced phased array ultrasonic testing, or PAUT, weld inspection and corrosion mapping operations. Powered by a line-up of industry's favorite data acquisition instruments, our NDT scanners keep you Beyond Current.

Details

Corrosion Mapping Scanners

RMS PA - Automated Corrosion Mapping

The robust, field-proven RMA PA robotic scanning head has been successfully deployed on various assets such as storage tanks, pressure vessels, pipelines and other critical structures in harsh environments including oil and gas, offshore, mining and critical assets.

Learn more

R-Scan Array - Semi-automated Corrosion Mapping

The RMS integrates a detachable handheld manual scanner for the inspection of smaller areas and assets ranging from 4 inch (101 mm) to flat plate.

The R-Scan Array can be purchased as an independent scanner, simply connect the scanner to a M2M instrument and you have a semi-automated phased-array corrosion mapping system with onboard data collection capabilities.

Ideal for complex geometry components and restricted access areas the R-Scan array offers improved inspection dexterity and total battery-operated portability.

Learn more

LYNCS CM - Manual Corrosion Mapping

LYNCS CM is an advanced modular ultrasonic inspection scanner that has been designed by experts to provide Phased Array (PAUT) corrosion mapping and PAUT/TOFD weld integrity assessment. It is the first truly versatile system that allows users to interchange between weld inspection and advanced corrosion mapping in less than 1 minute.

Onboard scanner controls for seamless integration with the M2M Gekko and Mantis instruments. In weld inspection mode operators, can start and stop a scan. In corrosion mapping mode, operators can increment or stitch data together without touching the PAUT instrument.

Learn more

NDT PaintBrush - Semi-automated Corrosion Mapping

The NDT PaintBrush has set a new market benchmark for corrosion mapping. This extremely agile scanner can do both flat surface and curved surface inspection, increasing inspection confidence by providing 100% area coverage.

The product's intuitive operation makes corrosion mapping quick and straightforward. Coupled with the TOPAZ ultrasonic instrument family and UltraVision software, NDT PaintBrush is one of the best solutions available for corrosion and wall-thickness mapping.

Learn more

ElbowFlex - Manual Corrosion Mapping of Pipe Elbows

The ElbowFlex scanner is the perfect tool for quick, manual ultrasonic inspections of pipe elbows. It is ideal for detecting and measuring different types of flaws including corrosion pitting, mid-wall lamination and can measure remaining wall thickness.

The highly versatile ElbowFlex scanner can scan on both the straight and elbow parts of a pipe. It is designed so that one flexible phased array probe can inspect pipes and elbows from 100 mm (4 in) nominal pipe size (115 mm/4.5 in) to flat.

Learn more

FlexTrack - Automated Corrosion Mapping

FlexTrack is a versatile automated XY scanner on a flexible track that can be configured for many inspection applications of aerospace structures both in production and maintenance.

The FlexTrack scanner comprises of a motorized actuator installed on a module that moves on a flexible track. It allows for raster scanning in both directions with the arm being the scan axis and the track the index axis, and vice versa.

Learn more

Weld Inspection Scanners

LYNCS WI

LYNCS WI weld inspection configuration can accommodate up to 6 PA and/or TOFD probes and has a dual-bar structure for enhanced stability and probe placement accuracy. It is a toolless scanner with an interchangeable design, making it ideally suited to all weld inspection configurations.

Learn more

LYNCS AXIAL

LYNCS AXIAL is a bolt-on option for the LYNCS WI. Additional capabilities include weld inspection (PAUT, ToFD & TFM) of seamed pipework such as electric resistance welded (ERW) pipes and vessel seam welds, both ferrous and non-ferrous.

Learn more

LYNCS CHAIN

LYNCS Chain is a bolt-on option for the LYNCS WI or LYNCS CM providing fast and precise inspection of pipes ranging from 100mm (4in) to 812mm (32in).

The LYNCS chain increases weld and corrosion inspection capabilities on non-ferrous piping such as stainless steel and High-density polyethylene (HDPE). The design offers incredible alignment and stability while maintaining full use of the LYNCS superior advantages, such as onboard controls promoting a one-person operation.

Learn more

NDT Sweeper

NDT Sweeper can virtually replace multiple specialized scanners due to its ability to scan both flat and curved surfaces. It’s ideal for various applications including long seam weld inspections and corrosion mapping.

Thanks to its small, lightweight, and ergonomic design, NDT Sweeper can easily scan in many difficult-to-reach areas eliminating the need to deploy an automatic scanner in those situations. Unlike wheel probes, both axes are encoded so there is no need to draw an index line on the specimen when scanning.

Learn more

Nozzle Scanner (3-axis)

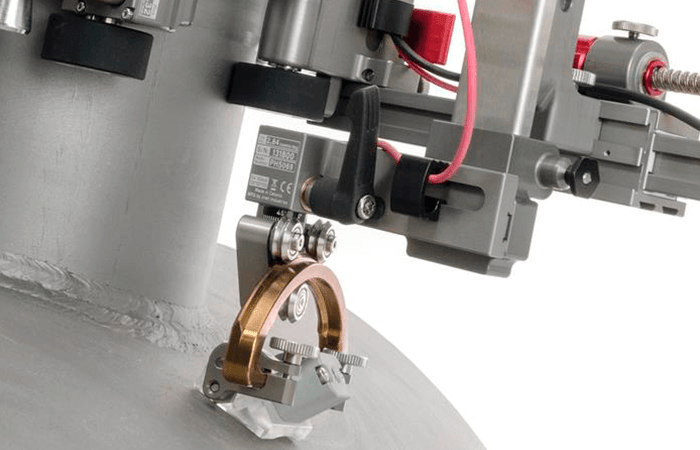

A versatile manual scanning solution developed for the inspection of nozzle welds. Available for two-axis and three-axis instruments and adaptable to cover a wide range of 90-degree nozzle sizes, from 76.2 mm (3 in) upwards, on ferritic and austenitic materials. The Nozzle scanner is natively Gekko compatible. Only 127 mm (5 in) clearance.

Request more information

Automated Scanner Navic

The Navic is a modular, motorized, steerable scanner designed to carry multiple attachments used in various scanning and inspection applications. The remote operated scanning platform is capable of circumferential scans from 70 mm (2.75 in) minimum OD to flat surfaces and longitudinal scans from 305 mm (12 in) minimum OD to flat. Its joystick-controlled steering allows for smooth and accurate weld tracking. The modular design of the Navic allows it to carry multiple attachments used for various scanning and inspection applications. Manufactured by JIREH.

Request more information

PAUT Brush Scanner (3-axis)

MATRYX encoded rotating arm: Encoded rotating arm used in order to perform 2D ultrasonic mapping (C-scan) with standard phased array probe. This scanner uses 3 encoders (see detail in “MATRYX quick start” documentation.

Two fixing systems are available: Magnets and vacuums.

This package contains:

  • 1 × MATRYX with two encoded axes
  • 2 × encoding cables
  • 1 × adjustable probe holder
  • 1 × industrial casing
  • 1 × quick start documentation
  • Guarantee 1 year
Request more information

Slider Scanner (2-axis)

Manual inspection encoded system designed for at and curved surfaces 6 degrees of freedom. Encoding on 2 axes (C-scan mapping). The encoding case is sliding on a rail which is fixed on the part to be inspected. Magnets or suction cups are available for non-ferritic materials.

This package contains:

  • 1 × MATRYX encoding on 2 axes
  • 2 × wires specific connector adapted to EKOSMART MATRYX
  • 1 × probe gate
  • 1 × carrying case
  • Documentation in french
  • Training
  • Guarantee 1 year
Request more information

String-encoder

Wire encoder incremental. Standard linearity of +/-0.20%. Index of protection: IP50. Includes magnets for ease of use. Manufactured by EKOSCAN, compatible with Gekko®.

Request more information
