The Eddyfi Technologies' DYNARAY® instrument family sets the highest performance standard for phased array UT technology. Delivering unparalleled power and versatility, DYNARAY is optimized for inspections requiring 2D matrix arrays probes, long sound paths, low-frequency probes and complex geometries.
A range of configurations are available to meet your specific needs, from 64/64 up 256/256. DYNARAY instruments can drive a wide range of probe frequencies, from 0.5 MHz up to 20MHz with a pulser voltage up to 200 Volts.
Details
Uncompromised performance
From a performance standpoint, DYNARAY delivers. The high data throughput helps eliminate any hardware speed limitations and can increase scanning speed. Plus DYNARAY instruments are capable of handling data files up to 20 GB and 16-bit resolution signals so no inspection configuration is too challenging.
Capable of handling the most challenging inspection applications
- 2D matrix arrays
- Inspection requiring long sound paths
- Low-frequency probe operation
- Inspection through complex geometries
Powered by UltraVision software
Driven by the powerful UltraVision software platform, DYNARAY offers advanced data acquisition and analysis. It can dynamically adapt focal laws to conduct inspections on complex surfaces. The unique 3-D environment provides all the tools necessary for the creation of components and visualization of examination data. Additionally, it can generate optimized acoustic beams through complex inspection surfaces.
Configurations to meet your specific needs
A range of configurations are available to meet your specific needs, from 64/64 (up to 64 simultaneous active channels) to 256/256 (up to 256 simultaneous active channels)
DYNARAY product family offers
- Up to 256 active channels
- Up to 4096 Focal Laws
- 16-bit amplitude resolution
- Dynamic Depth Focus (DDF)
- Position dependent focal law configurations

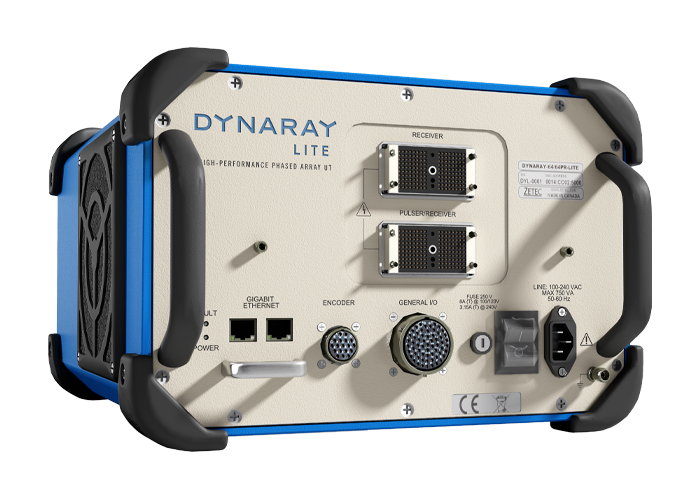

DYNARAY Lite 64/64PR
- Up to 64 simultaneous active channels;
- Can use the same 64 channels as transmitters and receivers or 64 channels as transmitters and 64 others as receivers;
- 2 Hypertronics and 16 Lemo00 connectors.
DYNARAY 64/64PR
- Up to 64 simultaneous active channels;
- Can use the same 64 channels as transmitters and receivers or 64 channels as transmitters and 64 others as receivers;
- 2 Hypertronics and 16 Lemo00 connectors.
DYNARAY 64/256PR
- Up to 64 simultaneous active channels and 256 in total.
- Can use the same 64 channels as transmitters and receivers or 64 channels as transmitters and 64 others as receivers;
- 4 Hypertronics and 16 Lemo00 connectors.

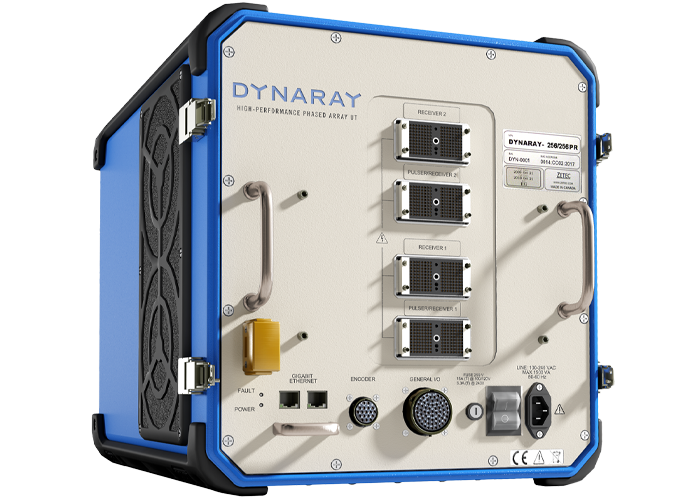

DYNARAY 128/128PR
- Up to 128 simultaneous active channels;
- Can use the same 128 channels as transmitters and receivers or 128 channels as transmitters and 128 others as receivers;
- 2 Hypertronics and 16 Lemo00 connectors.
DYNARAY 256/256PR
- Up to 256 simultaneous active channels;
- Can use the same 256 channels as transmitters and receivers or 256 channels as transmitters and 256 others as receivers;
- 4 Hypertronics and 16 Lemo00 connectors.
