Portable and rugged, ZIRCON® is the instrument of choice for any mission-critical ultrasonic inspection application. ZIRCON offers a 32/128PR phased array configuration and two conventional UT channels for pulse-echo, pitch-catch, or Time-of-Flight-Diffraction (TOFD) inspections.
ZIRCON delivers significant benefits, including automatic probe detection, self-diagnostics, impressive data throughput, and up to 1024 focal laws in a rock-solid fan-free casing.
Details
Features & benefits
Battery operated for portability
Get the job done with up to eight hours of battery life.
Compact and rugged for the real world
Portable with no air intake means Zircon can easily be deployed virtually anywhere, even in contaminated areas.
Easily handles advanced lightweight material inspections
ZIRCON TR supports the innovative Time Reversal (TR) technique for the inspection of complex lightweight materials like Carbon Fiber Reinforce Polymers (CFRP).
Superior signal quality for better results
State-of-the-art electronics deliver a high-quality and outstanding signal-to-noise ratio.
3D work environment
Controlled by UltraVision which offers a 3D work environment for the creation of components and data visualization.
Want to see Zircon in action? Book a demo!

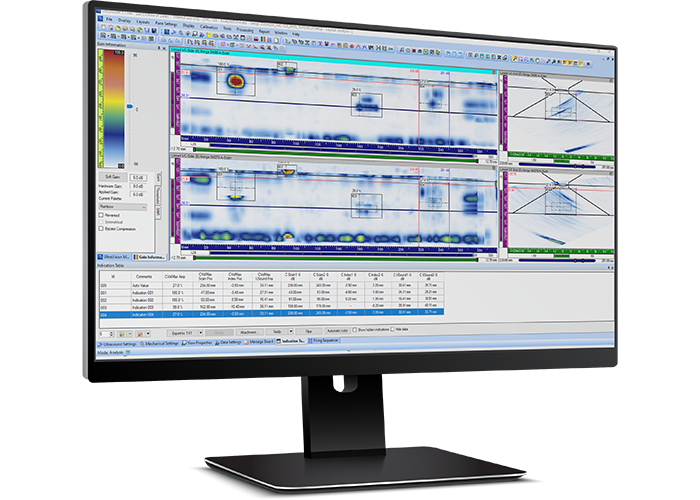

Powered by UltraVision software
Driven by the UltraVision software platform, ZIRCON offers advanced data acquisition and analysis. The unique 3D environment provides all the tools necessary for creating components, data analysis, and visualization. Using the time reversal inspection technique, ZIRCON TR is the optimal choice for inspecting CFRP or other advanced lightweight materials.
Count on ZIRCON to perform in extreme real-life conditions without compromising signal quality.
Visit the UltraVision page to learn more about the software features.
Specifications
INSTRUMENT
290 × 110 × 322 mm (11.4 × 4.3 × 12.8 in)
5.2 kg (11.5 lb)
No
Yes
120 VAC or 240 VAC
50 Hz or 60 Hz
75 VA
GENERAL
Custom ZIF with latch
32/128PR
2
up to 100 MHz
16-bit
12 kHz
Up to 10 MB/sec
75V PAUT, 200V UT
0.5 to 15 MHz
Yes
Digital
Analog
Digital
Yes
Yes
Yes
1024
Up to 16,328
LIN
2 quadrature-type
UltraVision
Zircon TR - Yes
Zircon - No
ENVIRONMENT
0°C to 40°C (32°F to 104°F)
-20°C to 70°C (-4°F to 158°F)
95%, non-condensing
