LineTrax

Unmatched performance, extra small form factor

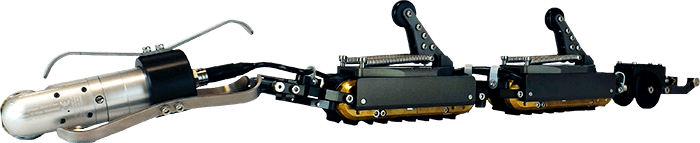

The LineTrax™ is a miniature pipe inspection robotic crawler that can tackle almost any confined space inspection application. It offers the same flexibility and adaptability that you can expect from all Eddyfi Technologies inspection robots.

Features

  • Miniature pipe inspection system operates in pipes as small as 51mm (2in) up to 305mm (12in)
  • Real-time video data for informed decisions
  • Standard depth rating of 60m (200ft), with option to go deeper
  • Access remote spaces from 100m (1,000ft) to 1,000m (3,300ft), depending on model

Details

The LineTrax™ crawler family offers a confined space inspection solution that is simple to use and quick to deploy as part of a regular maintenance and monitoring operation. Using a proprietary track design, LineTrax robots allow you to access areas that are simply inaccessible with other technologies. Eddyfi Technologies crawlers are ideal for scheduled or emergency inspections in petrochemical plants, nuclear generating stations, hydroelectric facilities, refineries, and more. The versatility of this robust inspection robot provides an all-in-one system for small and medium sized pipes, tanks, boreholes, or similar confined spaces where a downhole camera is needed. Anyone required to perform remote visual inspections in confined spaces with limited access need to add LineTrax as an essential part of their NDT toolkit. Ask us about the different configuration options offered to learn how this robotic crawler checks every box.

LineTrax crawlers are equipped with a rugged inspection camera designed for the harshest industrial environments. With a super low latency video stream, operators can easily navigate around obstacles and make instant decisions while the crawler is 1km (0.6mi) away. Camera options range from fixed focus to full pan, tilt, and zoom (PTZ).

LineTrax operates on universal software, i.e., whichever Inuktun crawler the inspector uses, the software interface remains the same ICON™ package. The intuitive controls minimize training time and increase productivity. Software features include automated routines, recording, tagging, screenshots, job recording, reporting, and more.

LineTrax 50

LineTrax 100

LineTrax 150

Ask an Expert

Key Industries

  • Petrochemical
  • Oil & Gas
  • Nuclear
  • Mining
  • Municipal
  • Water

Key Applications

  • HVAC Lines
  • Heat Exchangers
  • Coiled Tubing
  • Drill Riser Auxiliary Lines
  • Small Piping
  • Water Tanks

Beyond Inspection

Eddyfi Technologies offers custom robotic solutions for remote industrial applications beyond NDT. See how we’re helping clients achieve the seemingly impossible here.

Request more information

Benefits

Multiple configuration options to suit various inspection requirements

Portable system for easy transportation, quick setup and rapid deployment

Waterproof up to 60m/200ft for in-service or subsea operations

Intuitive functions allow inspectors to quickly learn and operate pipe inspection robotic system

Specifications

LineTrax 50

Pipe opening range

50-100mm (2-4in)

Maximum tether length

100m (330ft)

Maximum speed

1.9m (6.1ft) per minute

Vehicle weight

1.1kg (2.5lb)

Camera

Onyx camera and rear auxiliary camera

Controller

IPC portable controller

Lighting

LED camera lighting

Depth rating

60m (200ft)

Operating temperature

Normal: 0°C to 45°C (32F to 113F)
Limited: -10° to 45°C (14F to 113F)**

LineTrax 100

Pipe opening range

100-150mm (4-6in)

Maximum tether length

300m (1000ft)

Maximum speed

9m (30ft) per minute

Vehicle weight

5kg (11lb)

Camera

Spectrum 45 PT camera and rear auxiliary camera

Controller

IPC portable controller

Lighting

LED camera lighting

Depth rating

60m (200ft)

Operating temperature

Normal: 0°C to 45°C (32F to 113F)
Limited: -10° to 45°C (14F to 113F)**

LineTrax 150

Pipe opening range

150-300mm (6-12in)

Maximum tether length

1000m (3300ft)

Maximum speed

6.4m (21ft) per minute

Vehicle weight

45kg (100lb)

Camera

Spectrum 90 PTZ camera and rear auxiliary camera
Optional: Spectrum 120 HD PTZ camera and rear auxiliary camera

Controller

400V controller

Lighting

LED camera lighting

Depth rating

60m (200ft)

Operating temperature

Normal: 0°C to 45°C (32F to 113F)
Limited: -10° to 45°C (14F to 113F)**

NOTES

*

Spectrum 45 camera requires the three tracks configuration and will reduce the effective opening range to 75-100mm (3-4in)

**

Running outside the normal operating condition for prolonged periods of time can affect system performance and reduce life expectancy of some components
